INNOKIN EZ TUBE ZENITH MINIMAL KIT
The Innokin EZ Tube Zenith Minimal is a cost-effective pen-style vape kit with a minimalist design and creative and straightforward functionality, creating an unrivalled experience.
Features include a large integrated 2100 mAh battery, intuitive OLED display indicator, adjustable airflow and adjustable power of 6-40w at the twist of a cleverly designed dial.
Switch between mouth-to-lung (MTL) and restricted-direct-lung (RDL) with the included 0.3Ω RDL, 0.8Ω MTL and an additional six choices of Zenith Z-Coils.

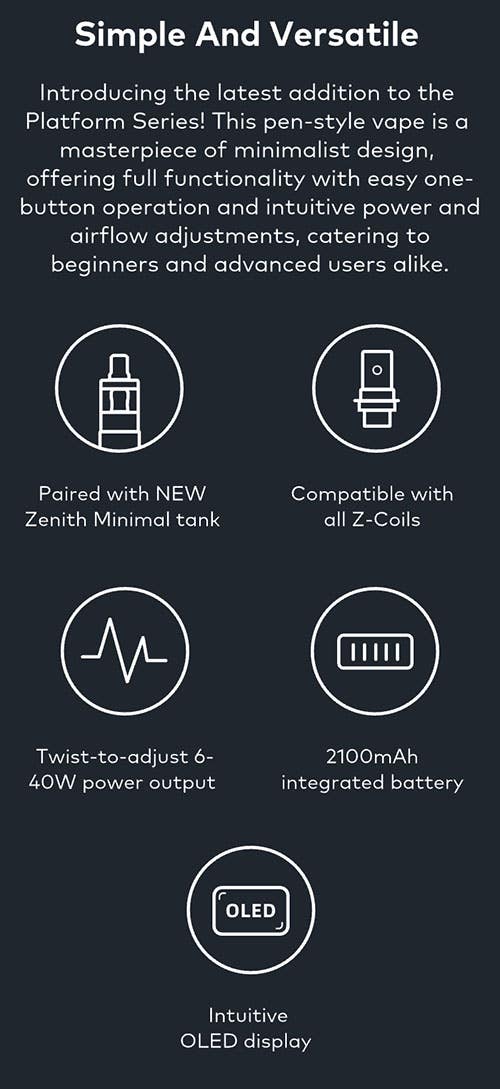

Key Features
The latest edition of Innokin's Platform series packs multiple features and functionality, catering to beginners and advanced users.
- Paired with Zenith Minimal Tank
- Compatible with all Z-Coils
- Twist-to-adjust 6-40w power output
- 2100 mAh integrated battery
- Intuitive OLED display

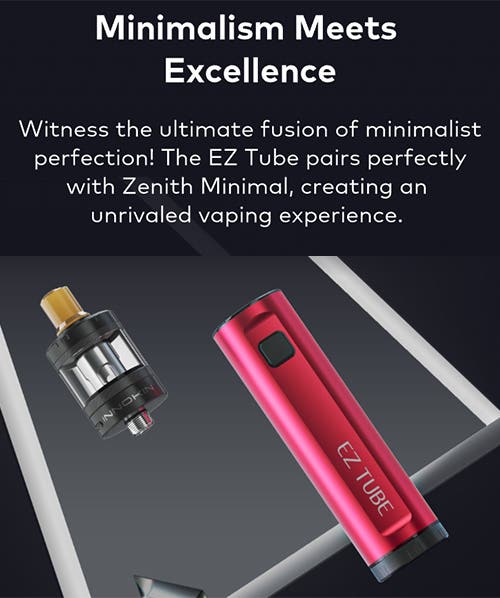

Pairing
The EZ Tube Zenith Minimal vape kit is the ultimate fusion of minimalist perfection, pairing the large, powerful EZ Tube battery with the Zenith Minimal for an unrivalled vaping experience.

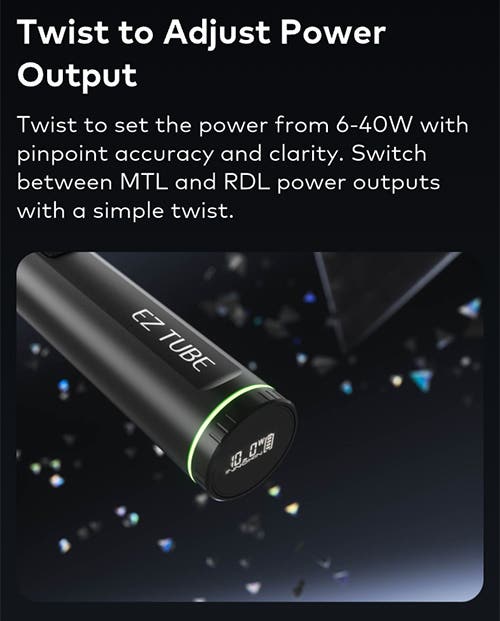

Twist
Innokin's EZ Tube power can be set from 6-40w with pinpoint accuracy and clarity. Twist to switch between MTL and RDL power outputs with a simple wheel spin.
Once you press the power button twice quickly, you can adjust the power using the bottom rotating ring.

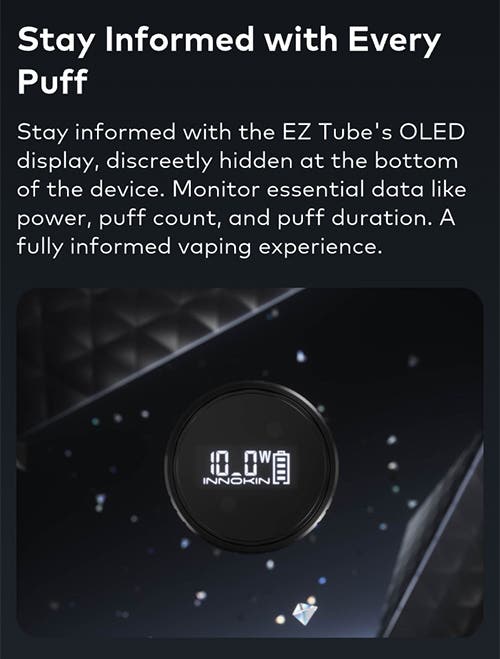

OLED
The EZ Tube keeps you informed with its discreetly hidden OLED screen. Monitor essential data like power, puff count and puff duration for a fully informed vaping experience.
Premium
Innokin's EZ Tube is powered by a premium-grade 2100 mAh internal battery. It is supported with some great UI in its intuitive battery life circular indicator, so you're never caught without power on the go.
The EZ Tube has a clever battery capacity light indicator on the OLED display located on the base, alerting users to their remaining battery life.
- Red: Below 10% (3.3-3.6v)
- Yellow: 10%-30% (3.6-3.75v)
- Green: Above 30% (3.75-4.2v)
When charging the EZ Tube battery, the battery indicator light on the OLED display will go off when it is fully charged and alert you of the charging status through the following lights:
- Red: Below 90% battery level
- Green: Above 90% battery level

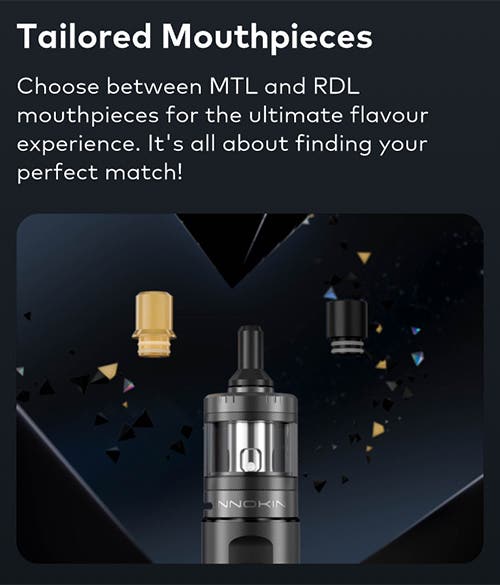

Tailored
Switch up your vaping style between mouth-to-lung (MTL) and restricted-direct-lung (RDL) with tailored mouthpieces for the ultimate flavour experience and find your perfect match. Airflow can also be adjusted through the tank's base, which closes off or opens up the freedom you can inhale on the device.

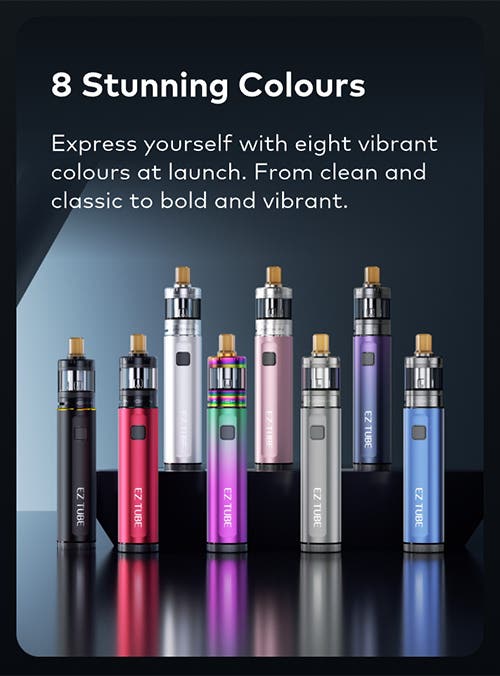

Stunning
The EZ Tube Zenith Minimal allows you to express yourself with eight stunning colours from clean and classic to bold and vibrant.
- Cerulean Blue
- Crimson Red
- Emerald Amethyst
- Indigo Lilac
- Lunar Grey
- Nightfall Black
- Sakura Pink
- Silver Glow

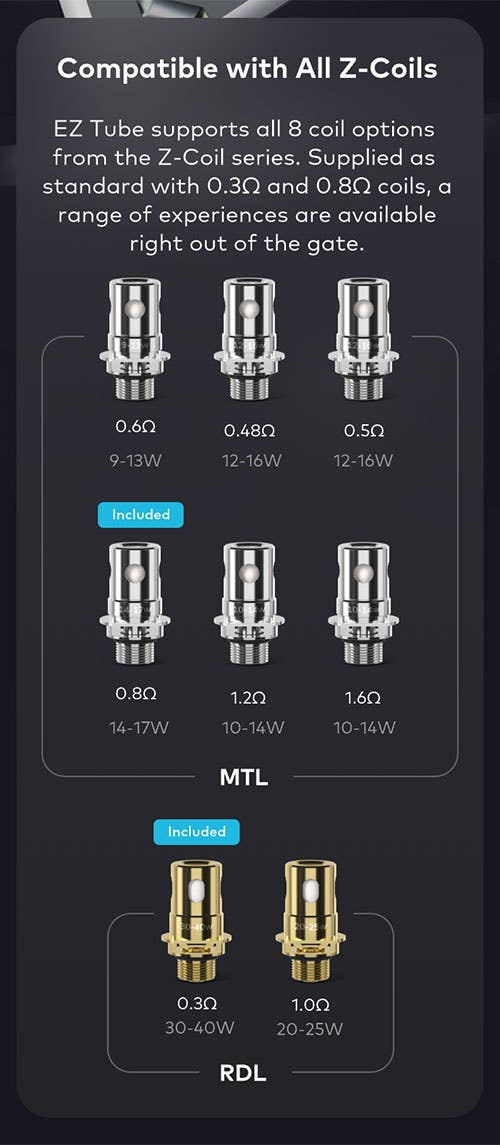

Compatibility
The EZ Tube Zenith Minimal supports using all eight coil options within the Innokin Z-Coil series. Supplied as standard with the 0.3Ω RDL and 0.8Ω MTL coils, various vaping experiences are available right off the gate.
The Z-Coils are a vertical placement coil heated from the coil's base seated within the Zenith Minimal tank.
Mouth-to-lung (MTL)
- 0.6Ω (9-13w)
- 0.48Ω (12-16w)
- 0.5Ω (12-16w)
- 0.8Ω (14-17w)
- 1.2Ω (10-14w)
- 1.6Ω (10-14w)
Restricted-direct-lung (RDL)
- 0.3Ω (30-40w)
- 1.0Ω (20-25w)
Unscrew the base of the Zenith Minimal tank to remove the coil, ensuring the new coil is lined up within the two parallel horizontal lines before screwing the base back into place.
Specifications
- Full kit dimensions: ⌀ 25.0 x 139.2 mm
EZ Tube Battery
- Dimensions: ⌀ 25.0 x 90.0 mm
- Built-in cell: 22500
- Battery mAh: 3.7v/2100 mAh, 7.77 Wh
- Min/Max Wattage: 6-40w
- Min/Max Voltage: 1-7.5v
- Max Output currency: 15A
- Charging current: 1.5A
- Resistance range: 0.3Ω-3.5Ω
- Body material: Aluminium alloy
- Cut-off time: 15 seconds
Zenith Minimal Tank
- Dimensions: 24 x 45.3 mm
- Capacity: 2 ml
- Mouthpiece size: 12 x 16 mm
- Coil compatibility: Zenith Z-Coils
- Airflow: Bottom airflow
What's in the box?
- 1 x EZ Tube Zenith Minimal Battery device
- 1 x Zenith Minimal Tank
- 1 x 0.8Ω MTL Z-Coil
- 1 x 0.3Ω RDL Z-Coil
- 1 x MTL / 1 x RDL Mouthpieces
- 1 x Type-C USB Charging cable
- User guide/manual
Depending on how many cigarettes you smoke, we recommend the following strength e-liquids with the Innokin EZ Tube Zenith Minimal kit.
Not sure what Nic Salts are? See our guide here.
To avoid premature coil failure, be sure to follow our coil priming guide.
