INNOKIN KROMA NOVA POD KIT
The Innokin Kroma Nova provides an intense flavour-packed experience and longevity with a large built-in 3000 mAh battery, adjustable power up to 60w and technologically advanced plug-and-play PZP coils catering for a mix of mouth-to-lung (MTL) and restricted-direct-lung (RDL) vaping styles.
The Kroma Nova features a crystal clear OLED display, intuitive UI, multiple adjustable settings and is button-activated.
Complete with an easy-slide top-filling Kroma Nova pod and 0.4Ω and 1.0Ω push-fit Innokin PZP coils, along with both a tight-drawing MTL drip-tip and looser RDL drip-tip; the Kroma Nova sets you up to fully customise the device to how you like it.
Features and Highlights
With the introduction of Innokin's PZP coil platform, the Innokin Kroma utilises advanced technology with its mesh coil structure and wicking design, allowing for faster, cleaner coil swaps with a plug-and-play design.
- PZP Coil for fast swaps
- Massive 3000 mAh battery
- 6-60 watt adjustment
- New upgraded interface
- Precise airflow adjustment
- Convenient sliding top-fill
Flavour

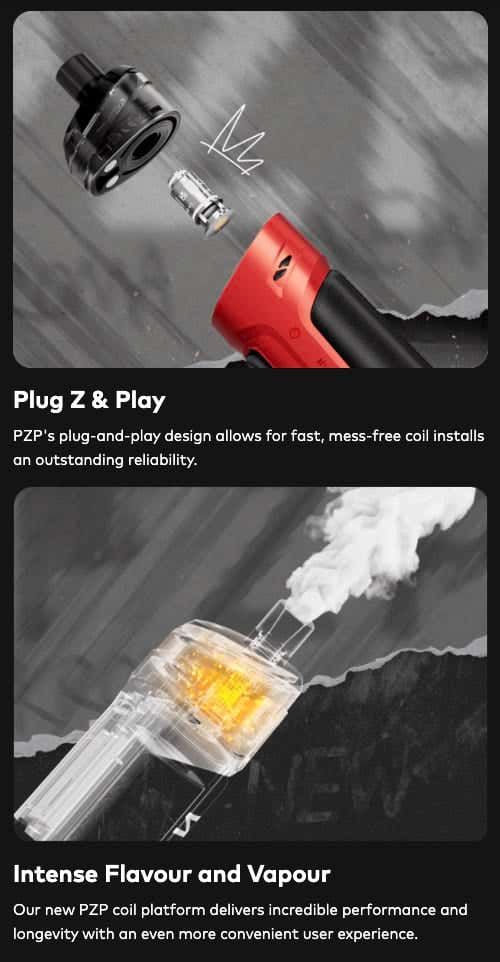

Innokin's PZP's plug-and-play design allows for fast, mess-free coil installs and outstanding reliability, delivering incredible performance, longevity and, most importantly, intense flavour and vapour.
Battery

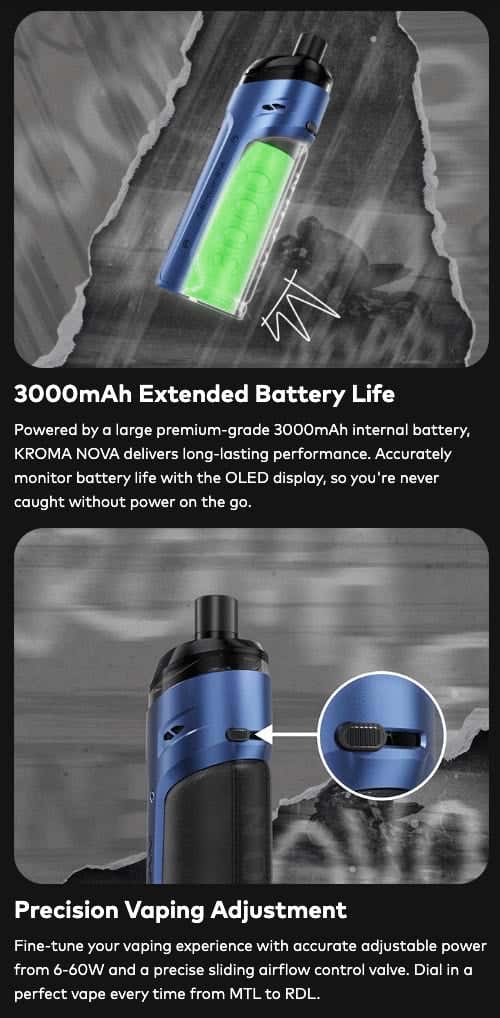

The Kroma Nova has one of the largest in-built batteries for a pod vape kit, taking advantage of a large premium-grade 3000 mAh battery, delivering long-lasting performance. The crystal clear OLED screen displays the remaining battery life, so you're never caught without power.
Incorporating the use of an adjustable airflow control valve, users can fine-tune their vaping experience with accuracy while honing in on their perfect setup with adjustable power from 6-60w to dial into a combination of mouth-to-lung (MTL) and restricted-direct-lung (RDL) vaping.
Smart Intuitive UI

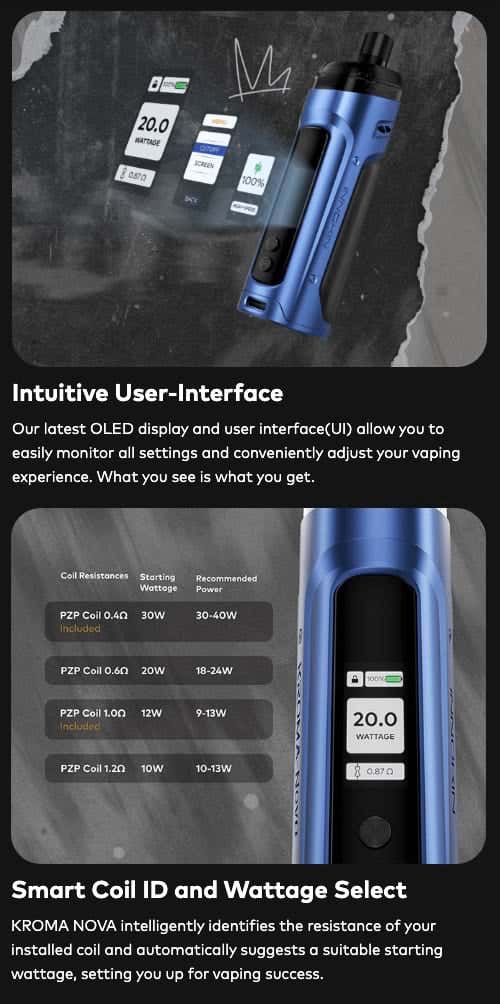

Innokin's latest OLED display screen and user interface (UI) allow users to monitor all settings and easily adjust them quickly.
The Kroma Nova intelligently identifies the resistance of the installed coil, automatically suggesting a suitable starting wattage to remove any misfiring at the wrong power levels.
Easy-to-use
Innokin has designed the Kroma Nova pod kit to be as easy as possible and with a sleek and lightweight design in mind.

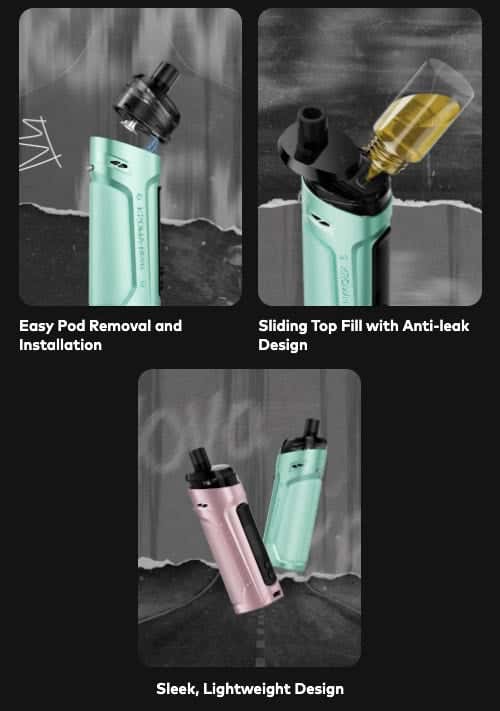

The Kroma Nova pod has an anti-leak design and is held in place with a solid magnetic connection but is easily removed to change the coil.
Incorporating a slide design, the top section of the Kroma Nova pod can be easily slid open to refill your e-liquid while the pod is installed in the device without the need to remove it.
PZP Coils

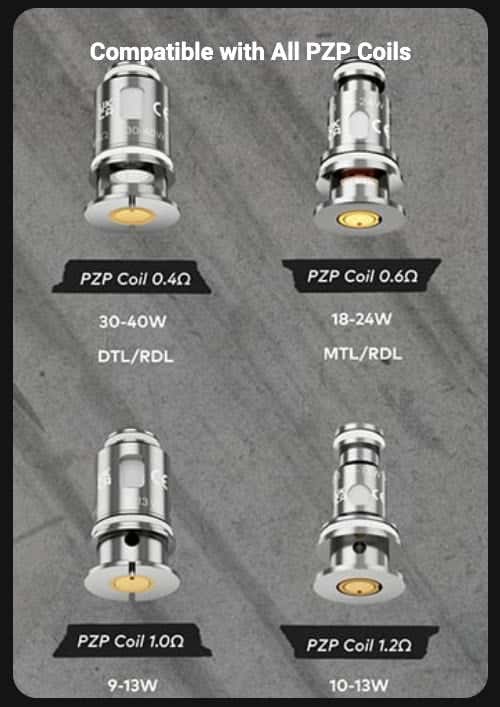

The PZP coil platform features mesh-constructed push-fit coils that cater to all vaping styles, from mouth-to-lung (MTL) to restricted-direct-lung (RDL) and direct-to-lung (DTL).
- PZP - 0.4Ω (30-40w) DTL/RDL
- PZP - 0.6Ω (18-24w) MTL/RDL
- PnP X - 1.0Ω (9-13w) MTL
- PnP X - 1.2Ω (10-13w) MTL
Components and Safety

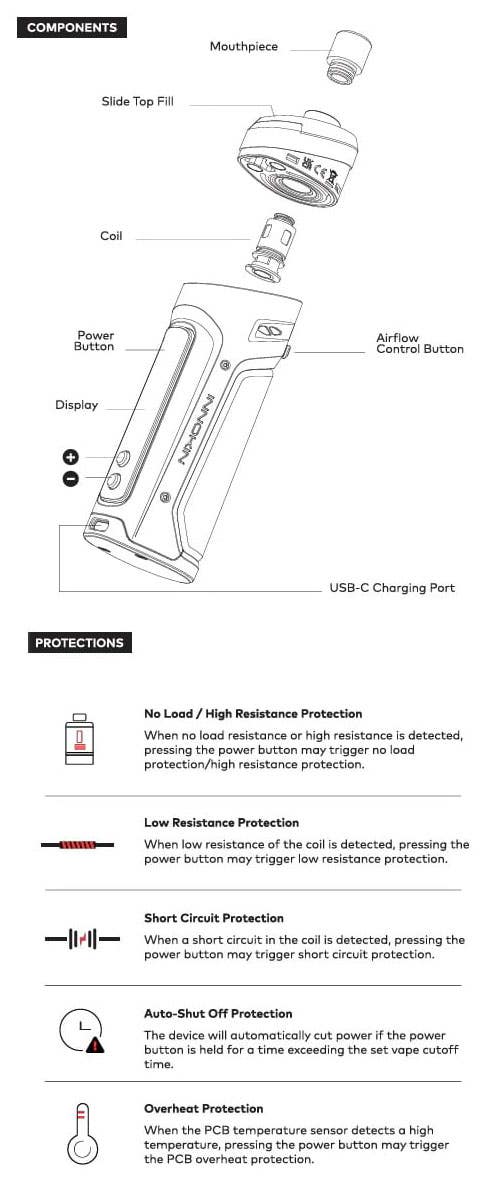

The Innokin Kroma Nova features replaceable PZP coils, a Kroma Nova pod and an RDL and MTL drip-tip. An adjustable airflow switch can be located on the back of the device with a USB charging port and display and control buttons on the front.
Protections
- No load/high resistance protection: When no load resistance or high resistance is detected, pressing the power button may trigger a no load protection/high resistance protection warning.
- Low resistance protection: When low resistance of the coil is detected, pressing the power button may trigger a low resistance protection warning.
- Short circuit protection: When a short circuit in the coil is detected, pressing the power button may trigger a low resistance protection warning.
- Auto shut-off protection: The device will automatically cut power if the power button is held for a time exceeding the set vape cutoff time.
- Overheat protection: When the PCB temperature sensor detects a high temperature, pressing the power button may trigger a PCB overheat protection warning.
Turning it on/off
Click the power button three times quickly to power the device. Repeat this process to power the Kroma Nova off. The home screen features battery level, lock/unlock status, wattage and coil resistance.

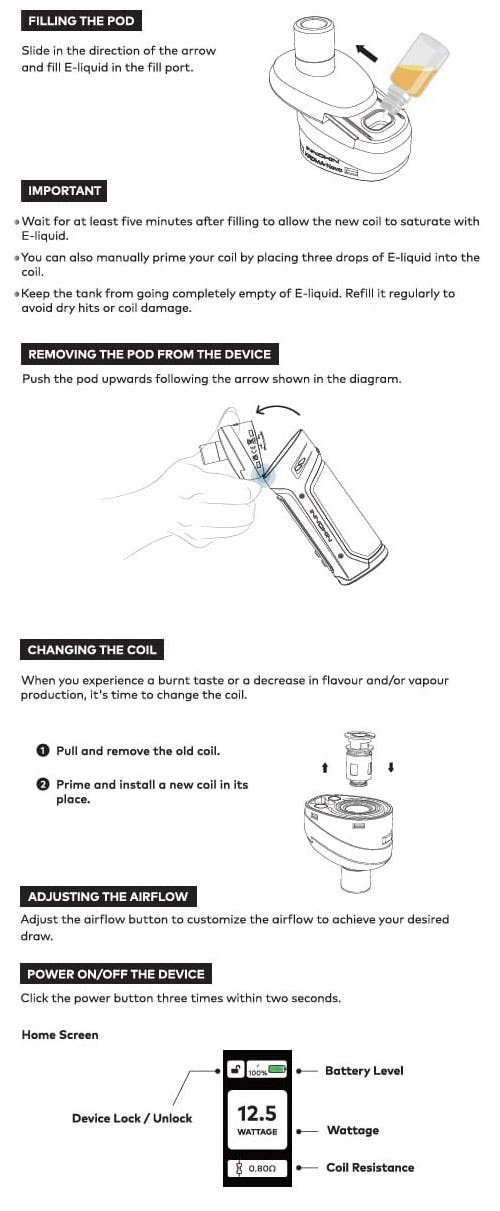

Filling the pod
Slide the top section of the pod in the direction of the arrow and fill the e-liquid through the opening. It is essential to prime the coil before filling the pod and then wait at least five minutes to allow it to saturate with e-liquid. Be sure to keep the tank from completely emptying of e-liquid to prolong the life of your coil.
Removing the pod
Holding the device in one hand, push the pod upwards, following the arrow shown on the diagram below to remove the pod with the other hand.
Changing the coil
It is time to change your coil when you experience a burnt taste or less flavour or vapour than usual. The PZP coils are a push-fit design that can be easily pulled and removed. Remember to prime the new coil before pushing it into place.
Adjusting the airflow
The airflow can be adjusted by moving the sliding switch left or right to customise the inhale and desired draw.

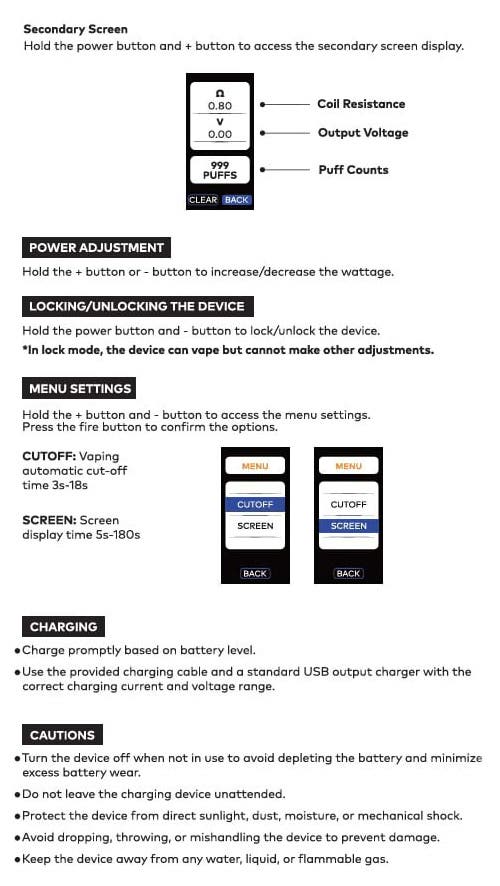

Secondary Screen
The Kroma Nova features a secondary screen which can be accessed by holding the power button and + button together.
Power Adjustment
To increase or decrease the wattage (power) applied, press and hold the + or - button until the number flashes and changes on-screen. The wattage you use will always be determined by the constraints of the coil you have installed. For example, the 1.0Ω PZP coil can run between 9 and 13 watts.
Applying more than the recommended power will likely prematurely burn out the coil.
Locking/unlocking
The Kroma Nova has a locking safety feature that can be enabled by simultaneously holding the power button and - button together. The device can still be vaped when in lock mode, but the wattage or power settings cannot be adjusted.
Menu Settings
Hold the + and - buttons to access the menu settings, pressing the fire button to confirm the options.
- Cutoff: Vaping automatic cut-off time of 3-18 seconds.
- Screen: Display screen time of 5-180 seconds.
Charging
Charge the battery when prompted based on the remaining battery percentage level. Use the provided Type-C charging cable and a standard USB output charger with the correct charging current and voltage range.
Cautions
Turn the device off when not in use to avoid depleting the battery and minimising excess battery wear. Do not leave the charging device unattended.
Specifications
- Dimensions: 116.33 x 39.15 x 30.76 mm
- Output power: 6.0-60.0w
- Output voltage: 1.0-7.5V
- Battery Capacity: 3000 mAh
- Charging: DC 5V / 1.7A
- Type-C USB Charging
What's in the box?
- 1 x Kroma Nova 3000 mAh battery device
- 1 x Kroma Nova Pod
- 1 x PZP 1.0Ω preinstalled coil
- 1 x PZP 0.4Ω Spare coil
- 1 x RDL Mouthpiece (MTL preinstalled)
- 1 x Type-C USB charging cable
- Quick start guide
- Warning booklet
The Innokin Kroma Nova pod kit is recommended for use with both High VG 70+ (DTL), 50/50 Freebase (MTL) and Nic Salt (MTL) E-Liquids.
Our guide on vaping styles explains the differences between mouth-to-lung (MTL) vaping and direct-to-lung (DTL) vaping.
To avoid premature coil failure, follow our coil priming guide.
